Applications
Filter bags, breather bags, flexible sleeves, and flexible connections where there is a need for air permeable fabrics. For machine setups where pressure fluctuations need to be vented continuously.
Availability
Available with many end connections:
- Tri-clamp coupling
LFR / LFRc / LFDDC / WVL - Jacob coupling
FDM / FSC - Hose clamp sealed in
- Bolted Flange patterns
- Snap-in fitting and snap band fitting
Available with:
- Flat Top
- Hygienic Conical Top
- Loops and eyelets for mounting.
- with bottom
- Open on both sides
- Reinforcement rings in stainless steel or plastic.
Fully tailor made to your design and application.
Weighing Applications
PNV 7506 AS FG is suitable for Low volume batch sizes and high accuracy weighing and dosing applications due to the flexibility of the fabric.
Chemical Resistance
- Resistance against acid – Good
- Resistance against solvents – Good/average
ATEX & Explosion Safety
PNV 7506 AS FG has been tested for its electrostatic chargeability, the sample has been tested according to DIN 54345.
Test according to DIN 54345-1
Surface resistance ROT (geometric median of the values of five measurements each):
- Side 1 (marked side): RoT = 6.7*102 Ω
- Side 2 (back side): RoT = 2.0*103 Ω
Volume Resistance RDT (geometric median of the values of five measurements each:
- RDT = 7.8*102 Ω
Test according to DIN 54345-5
Strip resistance Rst in warp direction (arithmetic median of five samples).
- Rst30 = 1.6*103 Ω
Strip resistance Rst in fill direction (arithmetic median of five samples).
- Rst30 = 2.7*103 Ω
Test was carried out with a test voltage of 1 V. Deviating from the provisions made in DIN 54 345, the test was conducted after at least 24 hours of storage at a temperature of 22 °C and a relative humidity of 34%.
The maximum permissible resistance value is: 108 Ω. This Value was under-run in all measurements. In an electrostatic sense, there is no objection to using the earthed filter material in hazardous places.

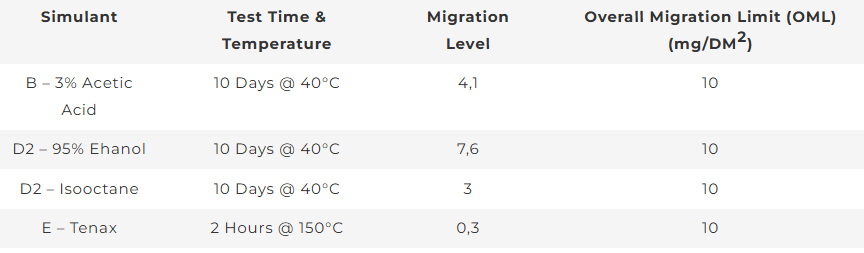

Validation of Overall Migration
Other compliancy’s
PNV 7506 AS FG complies with the following regulations and standards:
- Filtration Class; IFA test protocol filtration
- Eclectic conditions DEKRA 14EXAM 10538E
