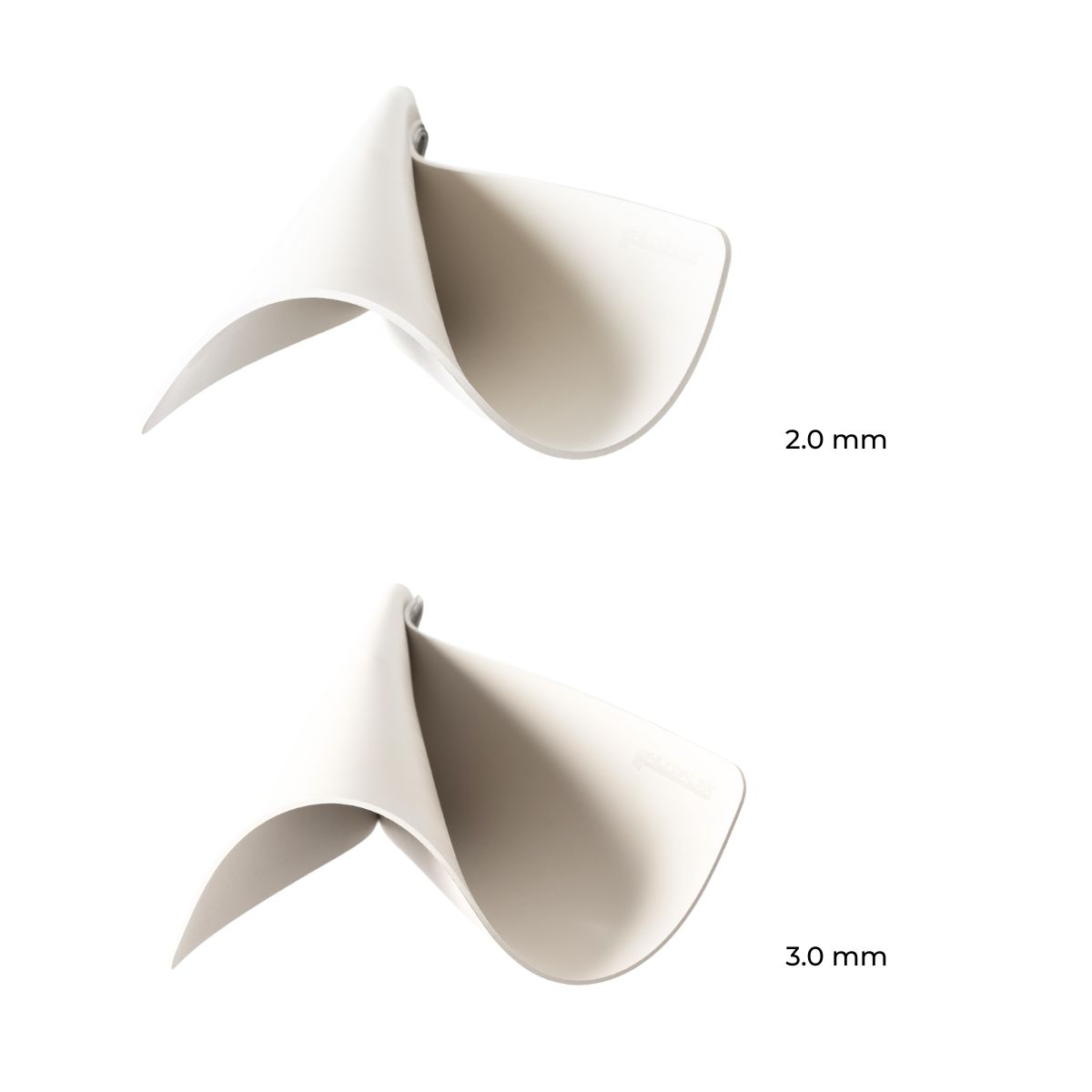

Natural Gum Rubber White FDA

SBR/NR Natural Gum Rubber White FDA

Crude natural rubber is found in the juices of many plants (shrubs, vines, and trees), the principal of which is the Hevea Brasiliensis tree, native to Brazil. After the latex is processed, natural rubber becomes an elastomer with excellent mechanical properties.

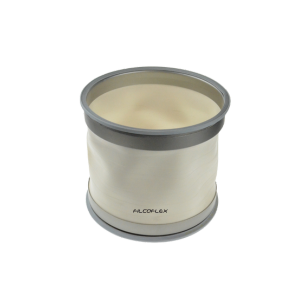

Pressure Resistance for Flexible Connectors

0,34 Bar / 5.0 PSI For temperatures up to 70 °C / 158°F. Please see “Operating Pressure Guide” for further information. We recommend using the shortest possible connector for applications where increased pressure and/or high temperature is expected. Please contact us for more information.

Weighing Applications

High volume weight and capacity weighing and dosing applications please see “weighing and dosing guide” for further information.

Additional information

Description code

GUM1 / GUM2 / GUM3 / GUM4 / GUM5

Material

Natural Gum Rubber

Color

White/Creme

Hardness

40 ° Shore A (+/- 5° Shore tolerance) DIN ISO 48-1994

Break Strength

25 MPa Iso 37 2005

Tear Resistance

45N/mm ISO37 – 2005

Maximum Elongation

780% ISO37 2005

Elasticity / Compression Set

88% BS.903 Part A8: 1990

Abresion

88% modifiziertes DIN53516. For wet Abresion

Specific Weight

0,99 t/M3

Operating Temperature

-40 °C to 70 °C, -40 °F to 158 °F

Air Permeability

0

Type of Material

Sheet on roll, 1200mm (+/- 20mm) x 10000mm
