HECHT Tri-Clamp

No separate gasket needed
Conical design against piling
Reusable metal rings (AISI 316L / DIN 1.4404)
Designed for optimal weighing

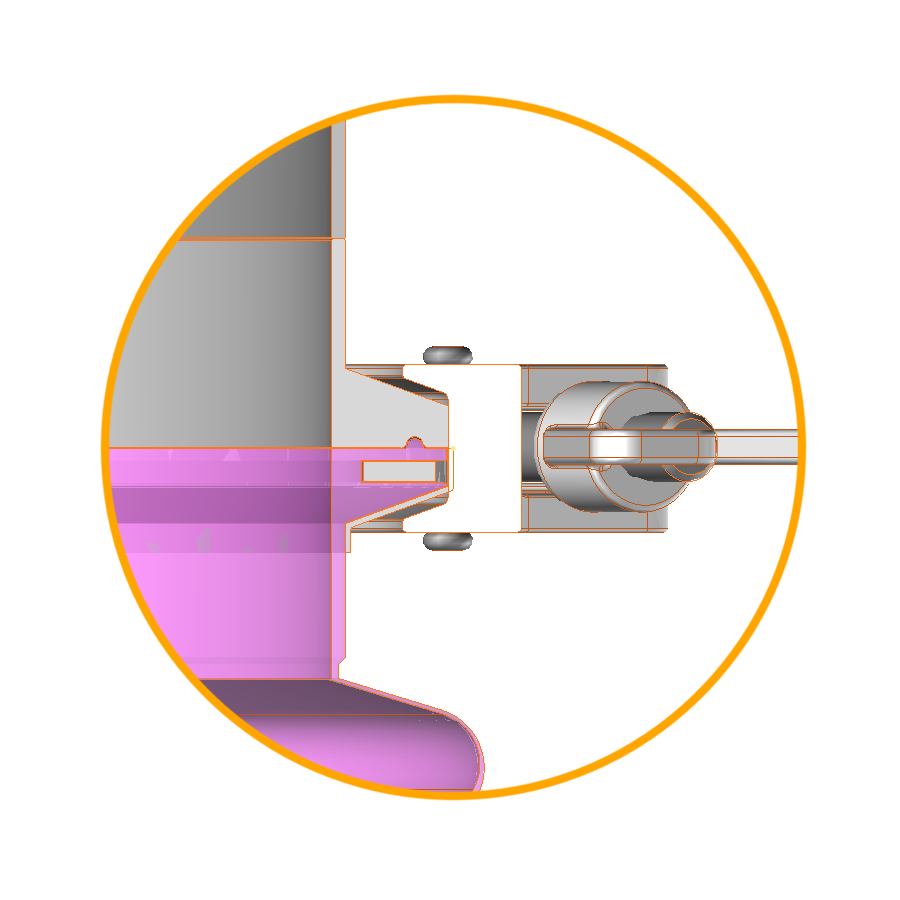

The Hecht Tri-Clamp Bellow is molded from one piece, providing its own seal, meaning a separate gasket ring is no longer required. It is designed for applications with stringent hygiene requirements and to create optimal weighing results. These bellows have a conical asymmetrical design. The bottom angle of 60° prevents powder collection, piling or blockage. No powders can remain behind, which is possible with the conventional spherical bellow. These bellows are suitable for contact with foodstuffs. The bellow is available for Tri-Clamp connection and is pressure resistant up to 100 mbar. It is suitable for CIP. Materials The HECHT tri-clamp and the HECHT hose clamp can be produced in silicone as well as EPDM, as well as Black Antistatic food contact compliant EPDM.

To help you pick the best material, please refer to our Materials pages.

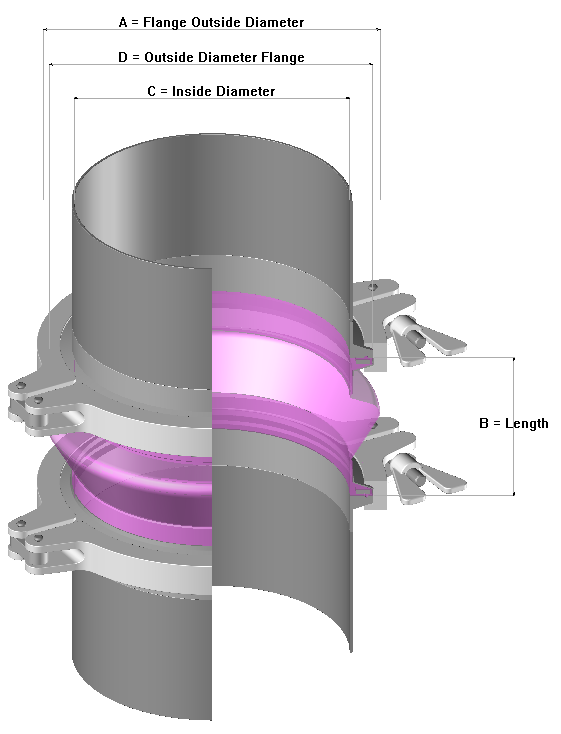

Material	Size	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
HECHT_KLB_080_SILI AS	Ø 80	13	33	63	81	106
HECHT_KLB_100_SILI AS	Ø 100	13	60	100	100	161
HECHT_KLB_150_SILI AS	Ø 150	13	70	110	150	214
HECHT_KLB_200_SILI AS	Ø 200	13	90	130	202	265
HECHT_KLB_250_SILI AS	Ø 250	13	70	110	250	314
HECHT_KLB_100_SILI TRA	Ø 100	13	60	100	100	161
HECHT_KLB_150_SILI TRA	Ø 150	13	70	110	150	214
HECHT_KLB_200_SILI TRA	Ø 200	13	90	130	202	265
HECHT_KLB_250_SILI TRA	Ø 250	13	70	110	250	314
HECHT_KLB_080_SILI TRA	Ø 80	13	33	63	81	106
HECHT_KLB_250_EPDM AS	Ø 250	13	70	110	250	314
HECHT_KLB_080_EPDM AS	Ø 80	13	33	63	81	106
HECHT_KLB_100_EPDM AS	Ø 100	13	60	100	100	161
HECHT_KLB_150_EPDM AS	Ø 150	13	70	110	150	214
HECHT_KLB_200_EPDM AS	Ø 200	13	90	130	202	265

HECHT Silicone

Color: Transparent
Hardness ° Shore A: 60
Surface Resistance: 106 Ω
Volume Resistance: 106 Ω

HECHT EPDM

Color: Black Opaque
Hardness ° Shore A: 60
Surface Resistance: 106 Ω
Volume Resistance: 106 Ω

OPERATING CONDITIONS

HECHT Silicone
ATEX Suitability: Yes
ATEX Zones: 20, 21, 22
Minimum Ignition Energy: Unknown
Explosion Shock Resistance: Not Tested
Pressure Resistance: 0,05 Bar
Negative °C: -60
Positive °C: +200

HECHT EPDM

ATEX Suitability: Yes
ATEX Zones: 20, 21, 22
Minimum Ignition Energy: Unknown
Explosion Shock Resistance: Not Tested
Pressure Resistance: 0,05 Bar
Negative °C: -60
Positive °C: +120

The HECHT Tri-Clamp is only available in standardized sizes and in three materials: Silicone, Silicone Antistatic, and EPM Antistatic. No further customizations can be made to this product.
