Improved from the classic single arch shape, the vase design with a 60° bottom cone angle prevents powder collection, piling, or blockage inside the bellows during operation.

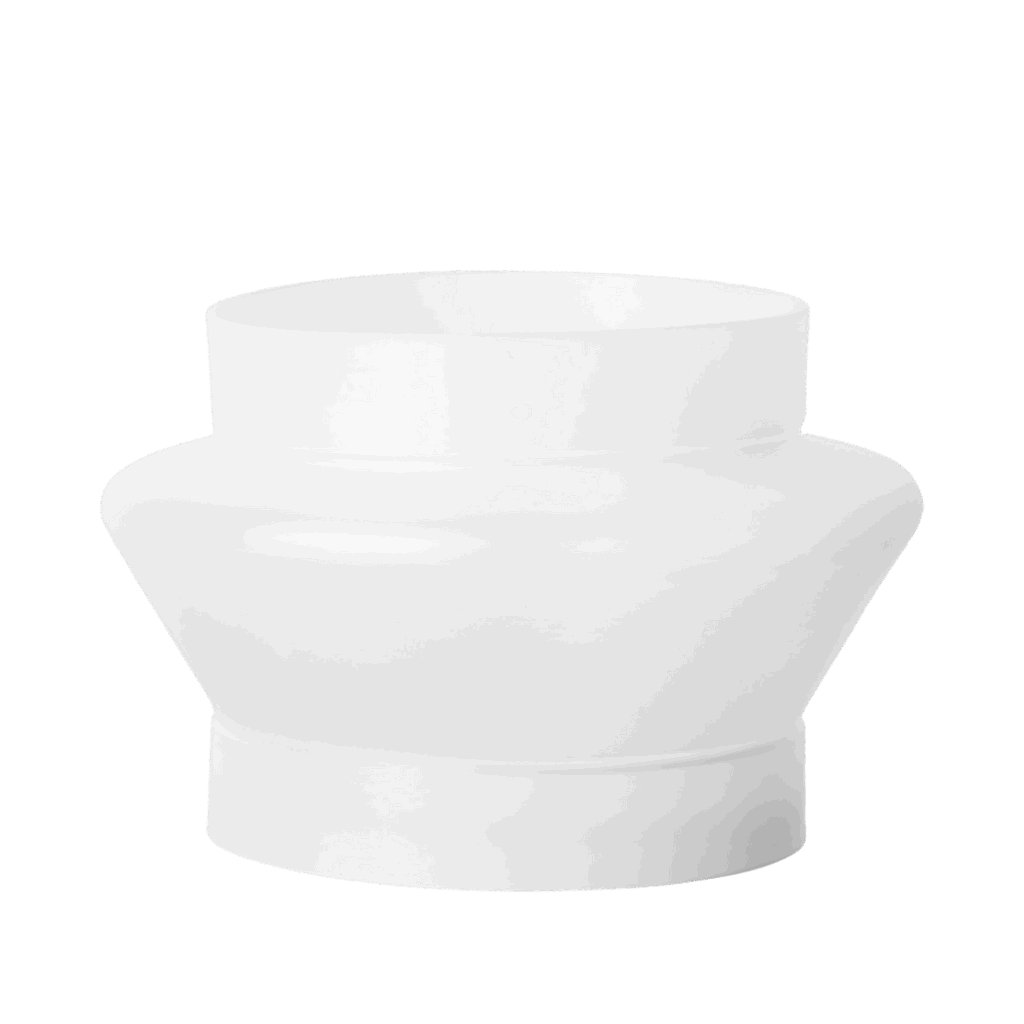

Silicone Weighing Bellows Asymmetrical Conical White are created for industries with rigorous standards and strict production parameters. Made out of our compression-molded translucent 60° Shore A silicone, this decoupling compensator relieves downstream stress by preventing force transfer. As a result, manufacturers can achieve accurate weighing results and maintain product purity.
SIL WB AC W is ideal for highly regulated applications with strict product purity, weight sensitivity, and hygiene requirement. It is safe for use in environments with explosion risk.

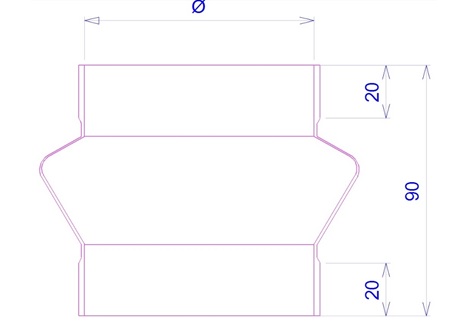

| Material | Length | Diameter |
|---|---|---|
| Silicone | 90 | 60 |
| Silicone | 90 | 75 |
| Silicone | 90 | 100 |
| Silicone | 90 | 114 |
| Silicone | 90 | 150 |
| Silicone | 90 | 200 |
| Silicone | 90 | 250 |
| Silicone | 90 | 300 |
| Silicone | 90 | 50 |
| Property | Specification |
|---|---|
| Material | Silicone |
| Color | Translucent White |
| Wall Thickness | 1mm single arch bellows / 2mm Straight End Sleeves |
| Finish | Matte |
| Hardness (Shore A) | 60° (+/- 5° tolerance) (ISO 48-4:2018 | DIN ISO 7619-1 compliant) |
| Surface Roughness (Inside End) | ± 0.80 Ra |
| Surface Roughness (Inside Bellows) | ± 0.70 Ra |
| Surface Roughness (Outside End) | ± 0.80 Ra |
| Surface Roughness (Outside Bellows) | ± 0.70 Ra |
| Elongation to Failure | 240% |
| Breathable | No |
| Air-tight | Yes |
| Dust-tight | Yes |
| Property | Specification |
|---|---|
| ATEX Rating | Safe for use in ATEX Zone 20, 21, 22 only for lengths < 100 mm and Minimum Ignition Energies (MIE) > 1 mJ |
| Limitations | Not for use in case of flammable gases and vapors, hybrid flammable gas/vapor/dust-air mixtures and in case of dusts with Minimum Ignition Energies (MIE) <1 mJ. |
| Property | Specification |
|---|---|
| Available with Stainless Steel Rings | No |
| Available with Plastic Rings | No |
| Available as Tool Release | Standard (with Filcoflex accessories) |
| Available as One-Ended Connector | No |
| Quick Access Port Option | No |
| Accessories | KLB20 Hoseclamp |
| Marking and Identification | No |
| Earthing and Grounding | No |
